Designed to work seamlessly with ARB’s maximum performance on-board compressors, the Air Locker® Manifold Kit enables easy installation of Air Locker® solenoids to an air source such as a compressor or regular gas bottle. With a working pressure of 150Psi (1030kPa), the manifold kit incorporates multiple ports for use with ARB’s Pump Up kit, as well as mounting brackets, and a Teflon stainless steel braided hose designed to cool air supply for tire inflation.
Working pressure of 150Psi (1030kPa)
For use with ARB’s Pump Up kit
Teflon stainless steel braided hose
Enables easy installation of Air Locker® solenoids to an air source

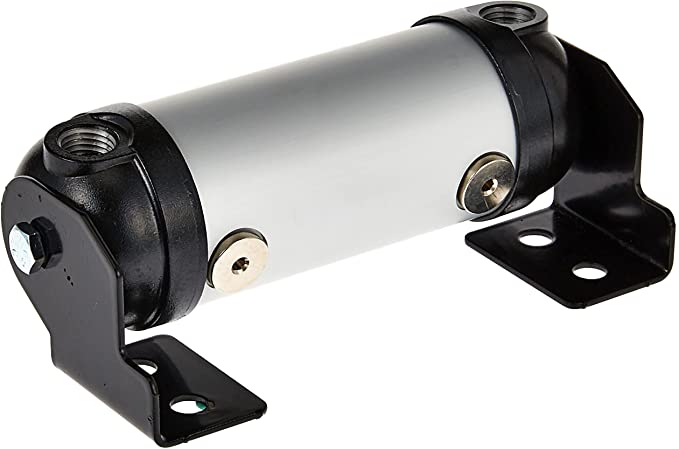

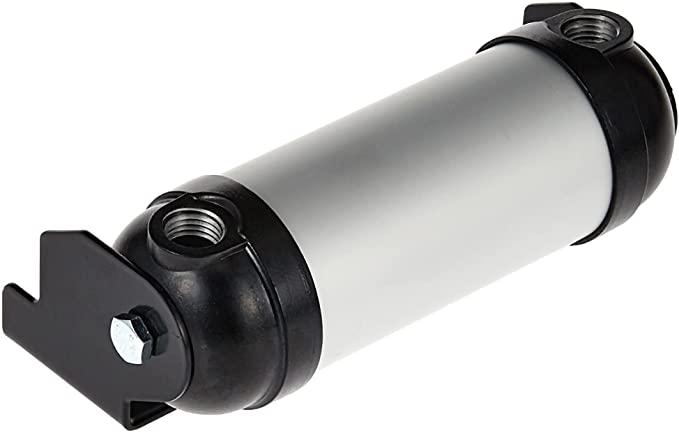

The manifold body with mounting bracket.
2 x ¼” NPT ports. One can be used for the pump while the other can be an input source.
2 x 1/8” BSPP port provisions for the Air Locker solenoids.

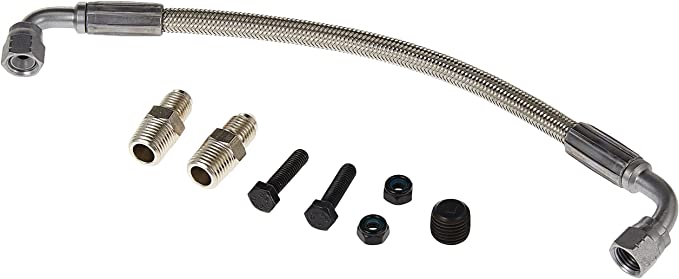

1 x stainless steel Teflon hose with fittings.
2 x JIC4-1/4 NPT nipples to connect the included hose directly to the compressor outlet, and manifold input.
2 x M6 hex head bolts and nylon locking nuts for installation of the manifold kit.
